2 Modes of operation,
simple CE mode and an
advanced CF mode
- CE mode is an easy to use, single-key operation, fully automatic.
Turn the unit on and wait for Auto-Calibration to complete
then
start your session. When your work is done, turn the unit off
and your data will be saved automatically in memory.
To reduce data clutter CE mode does not use
eDisk.
- CF mode is 75+ functions menu driven mode.
This is an advanced mode with full control over the unit.
CF mode automatically Saves & Retrieved data
to-from eDisk.
-
Flip between CE & CF
mode by pressing <MENU+ENTER> keys.
-
40 shot volatile
memory divided into 4 to 10 Strings.
-
An eDisk drive
for 400 shots divided into 10 folders.
eDisk holds data without battery for up to 40 years.
eDisk is divided into 10 folders with 40 shots each.
-
Data protection
option within CAM mode, turn eDisk On or Off.
-

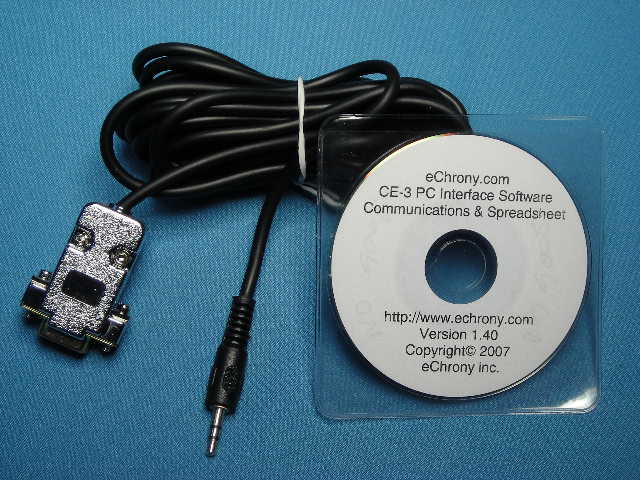

Remote Control via
PC Interface in plain ASCII readable text.
Baud rates 300 to 4800-b/s, 3-wire cable, maximum 200-feet.
OS Independent Interface - uses simple RS232 TTY interface.
Import data to any Spreadsheet or Data base with ASCII format.
We provided Macros for Microsoft Excel.
-
Elapsed time between
shots transmitted to the PC, +/-0.001 Sec.
-
Download data to PC;
single String, Folder or an entire eDisk.
-
Alarms for; Low
battery, Missed or Bad shots, Memory Full etc
-
Ambient Temperature is
Recorded with each shot.
-
Velocity and
Temperature are Synchronized at all times.
-
View Statistics in
Real time as you shoot.
-
Stats available:
- Low
- High
- Average
- Extreme Spread
- Standard
deviation
-
Percent Standard Deviation
- Power Factor in grains-f/s/1000 or g-m/s
- Energy is in joules regardless of the units selected
- Total shots in the string
-
View Cross String
Statistics by scrolling from string to string.
-
Bullet mass entry,
0.005 to 40.950 gm or 0.077 to 631.95 grains
-
Change Units on the
fly from Stats or Data mode.
-
Select USA or METRIC
system with One Time Conversion view
-
Adaptive Calibration
to
scan for environment
problems.
-

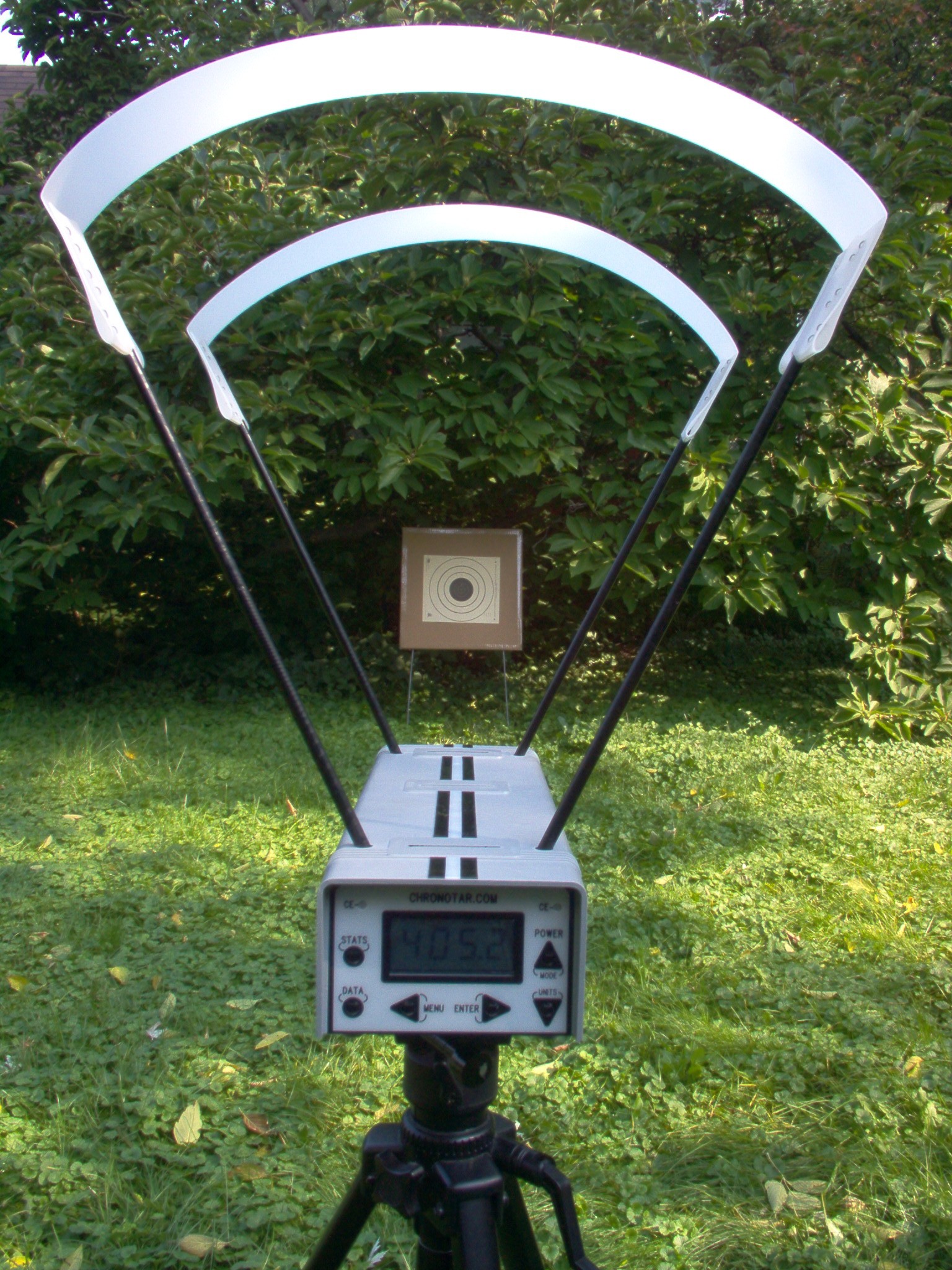

Aiming lines,
for easy aim, no more guesswork with wire rods.
-

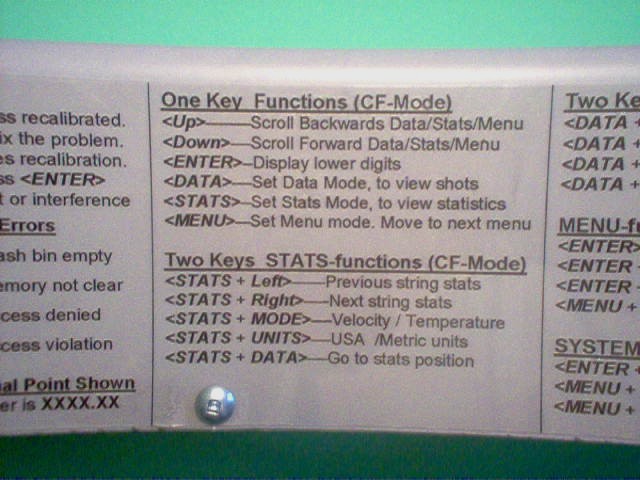

Quick reference
manual posted on the unit
-
Mounting hole for a
standard tripod.
-

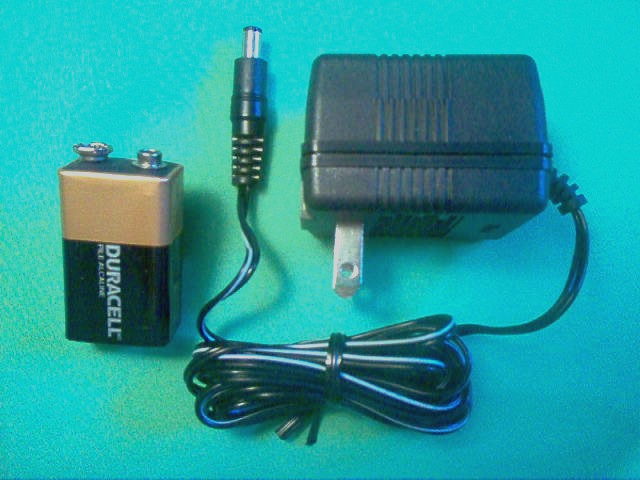

9-Volt
Battery included.
-
Velocity range 2.0 to 9999.99 feet/sec.
-
Super Archery mode for very sharp arrows & small objects
-
Temperature-compensated housing using digital
control.
-
Sensitivity
Level is
digitally controlled by the user.
-
Auto Power down,
selected from 00:01 to 03:50 HH:MM or None
-
Accuracy 0.4% to 0.5 %, range dependent.
-
8 digits internal calculation accuracy.
-
Extended digits
view,
down to 0.01 feet/sec.
-
Scroll up and dawn,
Shot to Shot, in Data or Stats mode.
-
Scroll left and right,
String to String, in Data or Stats mode.
-
Scroll forward and
backward from Folder to Folder.
-
Delete Shot & Undelete
Shot.
-
Delete String,
Undelete String & Old Data restore/recovery.
-
Delete Folder &
Undelete Folder
-
Shots are reviewed separately from Stats.
-
Statistics are reviewed separately from Shots.
-
Real time Ambient
Temperature display in Celsius or Fahrenheit.
-
Real time Battery
Voltage display for internal load conditions.
-
Recommended Indoor
Light Fixture Setup
-
Manuals & Software - all formats
-
Product Specifications
Users manual,
PDF format.
Accushot PC
Interface Software,
for Windows only.
Download Zipped File
Download Self
Extracting File
......................................................................
